Performance Report

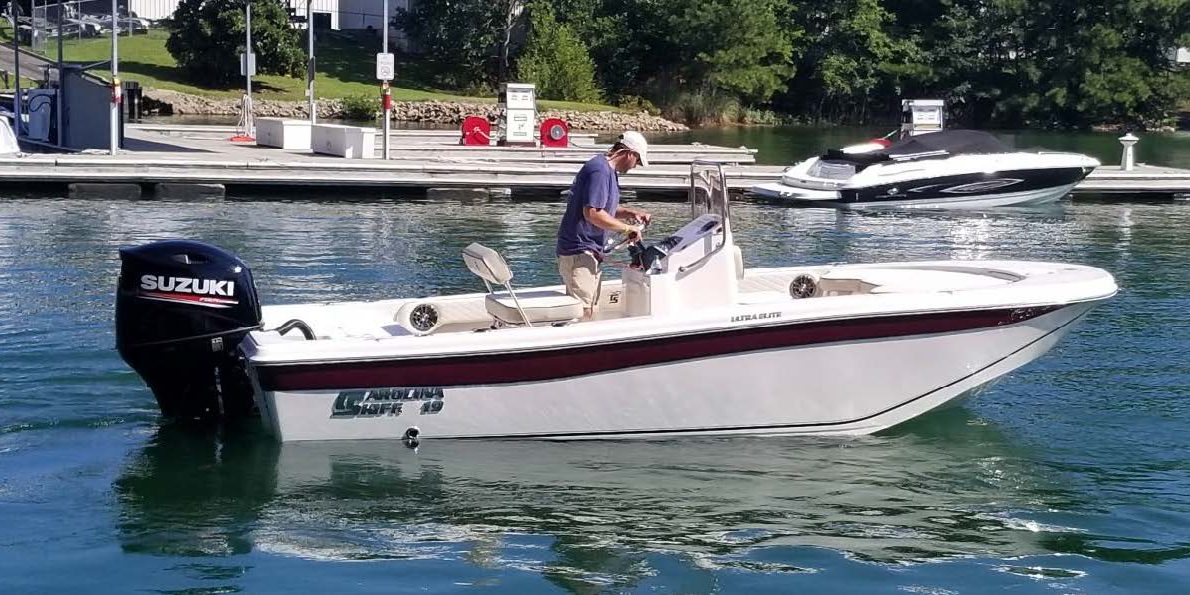

Carolina Skiff 19 Ultra Elite
TEST MOTOR:
DF150ATX
BOAT TYPE:
Center Console
TEST DATE:
8.8.2019
BOAT
19 Ultra Elite
MATERIAL
Fiberglass
LENGTH
19'
BEAM
8'1"
WEIGHT
2100 lbs
MAXIMUM HP
150 hp
FUEL CAPACITY
30 gal
TRANSOM HEIGHT
25"
STEERING
Hydraulic
ENGINE
Suzuki DF150ATX
ENGINE TYPE
4-Stroke In-Line 4
HP
150 hp
DISPLACEMENT
175.0cu in
OPERATING RANGE
5000-6000 rpm
WEIGHT
529 lbs.
LUBRICATION
Wet Sump
FUEL DELIVERY
Multi-Point EFI
IGNITION
Solid State
OTHER SPECS
Propeller
MATERIAL
Stainless Steel
DIAMETER/PITCH
14.75" x 19"
NUMBER OF BLADES
3
Mounting Height
HOLE POSITION
#2 Hole Up
JACK PLATE
N/A
TEST CONDITIONS
TEST CONDITIONS
WATER CONDITIONS
Light Chop
WIND VELOCITY
5-10 mph
AIR TEMPERATURE
90 degrees
FUEL LOAD
20 gal
WEIGHT ONBOARD
2 Persons
Full Safety Gear
Full Safety Gear
PERFORMANCE DATA
RPM
MPH
GPH
MPG
RANGE
IDLE
2.3
0.3
7.38
199
1000
3.8
0.6
5.89
159
1500
5.3
1.1
4.88
132
2000
6.6
1.6
4.07
110
2500
7.6
2.7
2.78
75
3000
9.7
3.6
2.69
73
3500
20.9
4.2
5.04
136
4000
26.2
5.8
4.52
122
4500
31.0
7.3
4.25
115
5000
35.3
8.5
4.13
112
5500
39.3
12.4
3.18
86
6000
43.3
15.1
2.87
77
PERFORMANCE SUMMARY
TOP SPEED
43.3 mph
0-25 ACCELERATION
6.24 seconds
OPTIMUM CRUISING RANGE
@3500 RPM
136 Miles
136 Miles
BEST CRUISING FUEL EFFICIENCY
@3500 RPM
5.04 MPG
5.04 MPG
FOR MORE INFORMATION
MANUFACTURER
Carolina Skiff
LOCATION:
Waycross, GA
WEBSITE:
Carolina Skiff
PHONE:
(800) 422-7282
SUZUKI marine
suzukimarine.com
