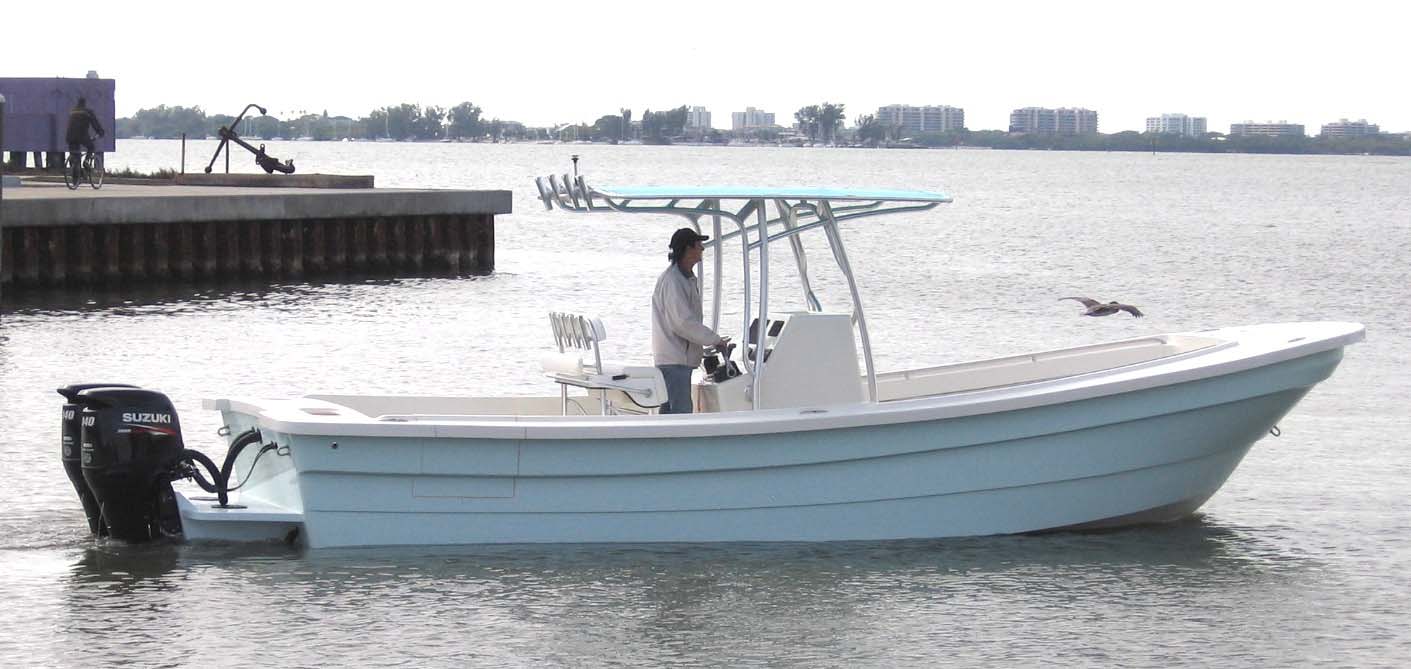

Panga Marine 32 SCX

MANUFACTURER: Panga Marine
LOCATION: Sarasota, FL
WEBSITE:
TEST MOTOR: DF140ATX/ATXZ
BOAT TYPE: 29CC New Horizon
TEST DATE: 1.24.2013

BOAT

32 SCX
MATERIAL
Fiberglass
LENGTH
29'
BEAM
8' 7"
WEIGHT
4700 lbs
MAXIMUM HP
500 hp
FUEL CAPACITY
200 gal
TRANSOM HEIGHT
25"
STEERING
Hydraulic

ENGINE

Suzuki DF140ATX/ATXZ
ENGINE TYPE
4-Stroke 4-Inline
HP
140 hp x 2 (280 hp)
DISPLACEMENT
2.0 L
OPERATING RANGE
5600-6200 rpm
WEIGHT
407 lbs
LUBRICATION
Wet Sump
FUEL DELIVERY
Multi-Point EFI
IGNITION
Solid State

OTHER SPECS

Propeller
MATERIAL
Stainless Steel
DIAMETER/PITCH
14" x 22"
NUMBER OF BLADES
3
Mounting Height
HOLE POSITION
5th Hole Up
JACK PLATE
N/A

TEST CONDITIONS

TEST CONDITIONS
WATER CONDITIONS
Moderate Chop
WIND VELOCITY
10-14 mph
AIR TEMPERATURE
74 degrees
FUEL LOAD
100 gal
WEIGHT ONBOARD
4 Persons
Full Safety Gear

PERFORMANCE DATA

RPM
MPH
GPH
MPG
RANGE
IDLE
3.4
0.5
6.80
1224
1000
4.5
0.8
5.63
1013
1500
6.4
1.4
4.57
823
2000
8.2
2.3
3.57
642
2500
9.2
3.9
2.36
425
3000
10.5
5.7
1.84
332
3500
16.3
8.1
2.01
362
4000
22.2
9.9
2.24
404
4500
29.3
11.9
2.46
443
5000
33.2
15.1
2.20
396
5500
35.6
17.3
2.06
370
6000
41.8
22.9
1.83
329
6200
42.8
23.9
1.79
322

PERFORMANCE SUMMARY

TOP SPEED
42.8 mph
0-25 ACCELERATION
6.4 seconds
OPTIMUM CRUISING RANGE
@4500 RPM
443 Miles
BEST CRUISING FUEL EFFICIENCY
@4500 RPM
2.46 MPG
