Performance Report
Twin Vee
TEST MOTOR:
DF250APX
BOAT TYPE:
Catamaran
TEST DATE:
1/22/26

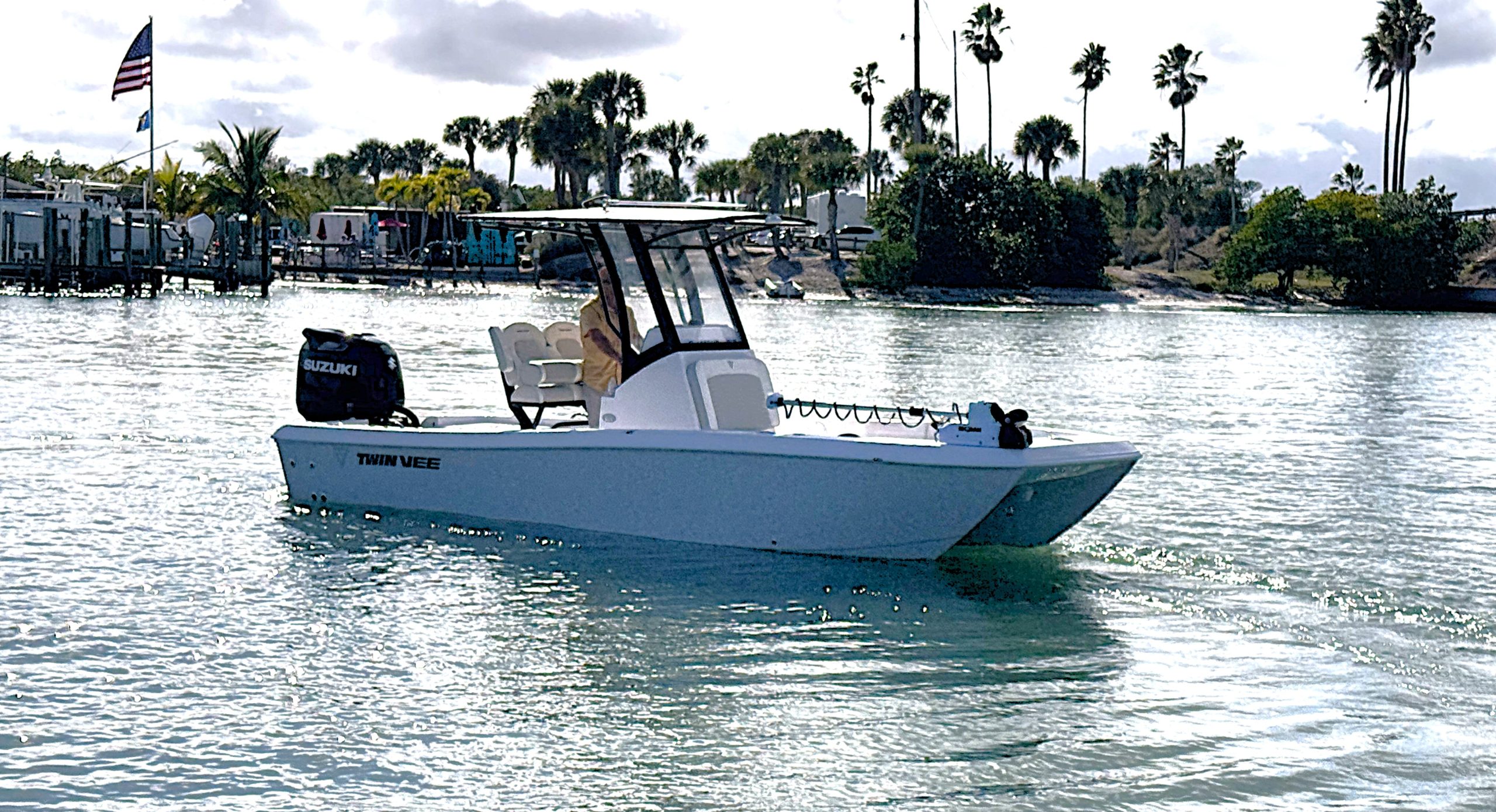

BOAT
22 Bay Cat
MATERIAL
Fiberglass
LENGTH
22'
BEAM
7'8"
WEIGHT (lb.)
3826
MAXIMUM HP
250
FUEL CAPACITY (gal)
60
TRANSOM HEIGHT
25
STEERING
Hydraulic
ENGINE
DF250APX
ENGINE TYPE
V6
HP
250
DISPLACEMENT (L)
4.0
OPERATING RANGE
5500-6100
WEIGHT (lb.)
639
FUEL DELIVERY
EFI
GEAR RATIO
2.08:1
OTHER SPECS
Propeller
MATERIAL
Stainless Steel
DIAMETER/PITCH
16/18.5
NUMBER OF BLADES
3
PART NUMBER
990C0-00810-185
Mounting Height
HOLE POSITION
4
JACK PLATE
N/A
TEST CONDITIONS
TEST CONDITIONS
WATER CONDITIONS
Calm
WIND VELOCITY (MPH)
5-10
AIR TEMPERATURE (°F)
76
FUEL LOAD (gal)
40
WEIGHT ONBOARD
2 Persons, Full Safety Gear
PERFORMANCE DATA
RPM
MPH
GPH
MPG
RANGE
Idle
2.9
0.8
3.9
209
1000
4.9
1.1
4.4
238
1500
6.4
2.2
3.0
161
2000
8.1
2.9
2.8
153
2500
12.5
4.5
2.8
151
3000
20.5
5.7
3.6
194
3500
27.1
7.3
3.7
200
4000
31.6
9.5
3.3
181
4500
36.2
14.3
2.5
137
5000
40.3
17.9
2.3
122
5500
43.7
20.8
2.1
113
5700
46.2
22.2
2.1
112
PERFORMANCE SUMMARY
TOP SPEED (MPH)
46.2
ACCELERATION (0-25 Sec.)
7.07
OPTIMUM CRUISING (RPM)
RANGE (MILES)
RANGE (MILES)
3500
200
200
BEST CRUISING (RPM)
FUEL EFFICIENCY (MPG)
FUEL EFFICIENCY (MPG)
3500
3.7
3.7
FOR MORE INFORMATION
MANUFACTURER
Twin Vee Powercat
LOCATION:
Ft. Pierce,Fl
SUZUKI marine
suzukimarine.com
PHONE:
772-429-2525
WEBSITE:
twinvee.com
