Proven and Reliable.

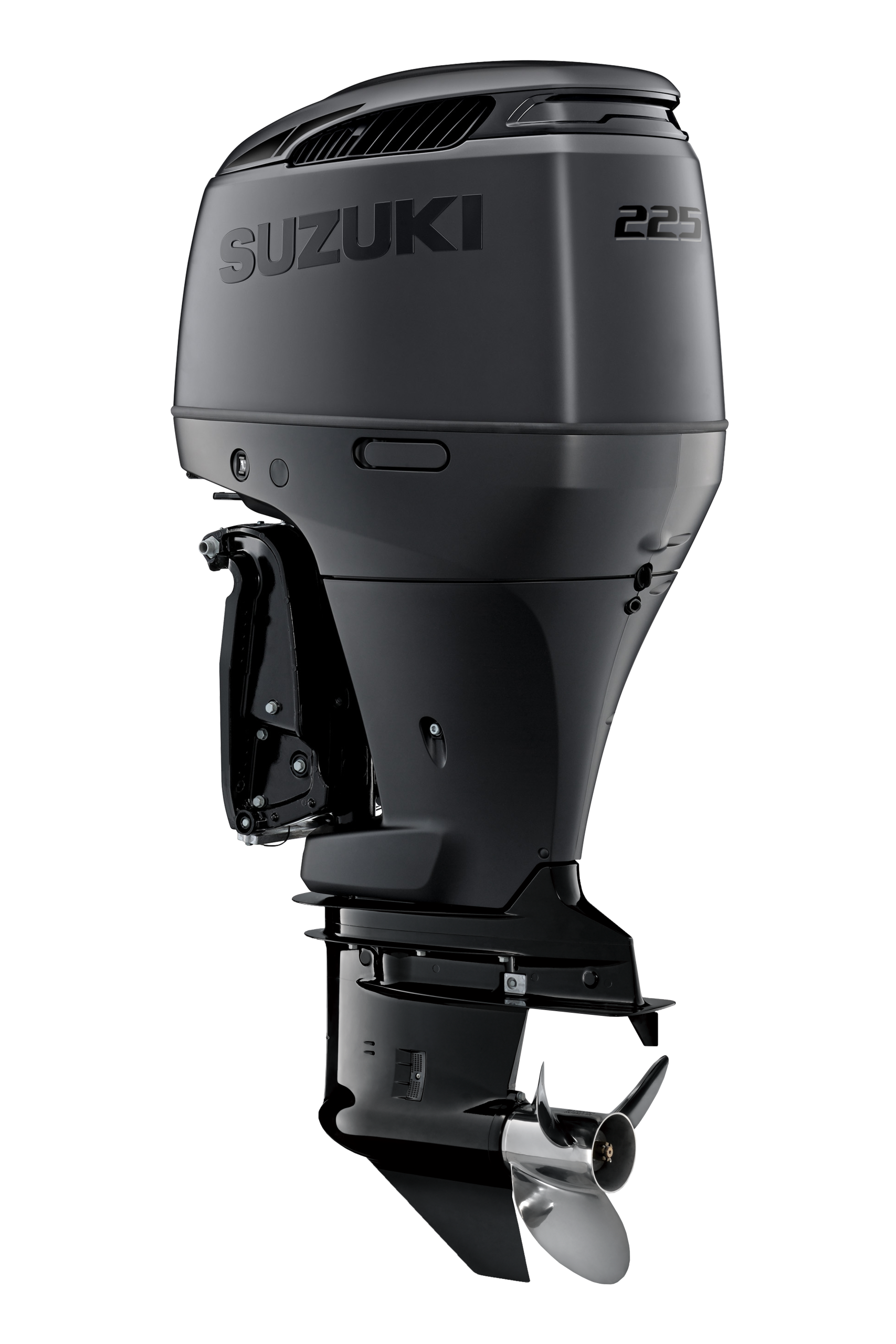

The new STEALTH DF225T is a 3.6L V-6 engine with mechanical controls, compatible with Suzuki’s CAN Bus for features like auto trim, keyless start, and troll mode. It includes dual overhead cams, 24 valves, variable valve timing, multi-stage induction, and enhanced cowling for improved performance and efficiency.
Features
- 1
Bold and powerful.
The DF225 is capable of producing approximately 38 Amps of power, ensuring reliable operation for your vessel even at engine speeds as low as 1,000 rpm. This output is sufficient to meet all onboard electrical requirements under various conditions.
Specifications
MODEL
DF225 STEALTH
Body Color
Matte Black
Recommended Transom Height (inches)
X:20
Starting System
Electric
Weight LBS
X:606
Engine Type
DOHC 24-Valve
Fuel Delivery System
Multi Point Sequential Electronic Fuel Injection
No. Of Cylinders
V6 (55°)
Piston Displacement inches (cc)
220.5 (3614)
Bore X Stroke Inches (mm)
3.74 x 3.35 (95 x 85)
Maximum Output HP
225
Operating Range (RPM)
5000-6000
Steering
Remote
Choke
N/A
Oil Pan Capacity quarts (liter)
8.5 (8.0)
Ignition System
Solid State Direct Ignition
System Output
12V 54A
Trim Position
Power Trim and Tilt
Gear Ratio
2.29:1
Standard Propeller
Optional See Dealer
Propeller Selection
17 - 27.5
