The confidence to win.

This new STEALTH series engine offers the latest technology to include Suzuki Precision (drive-by-wire) Controls. The cowling is a new design that features additional louvers, upper cover grips and new updated STEALTH Matte Black graphics with availability in our unique white finish. This gives you the ultimate performance that will have the competition staring and the fish running scared.


  • 1
  • 2
  • 3

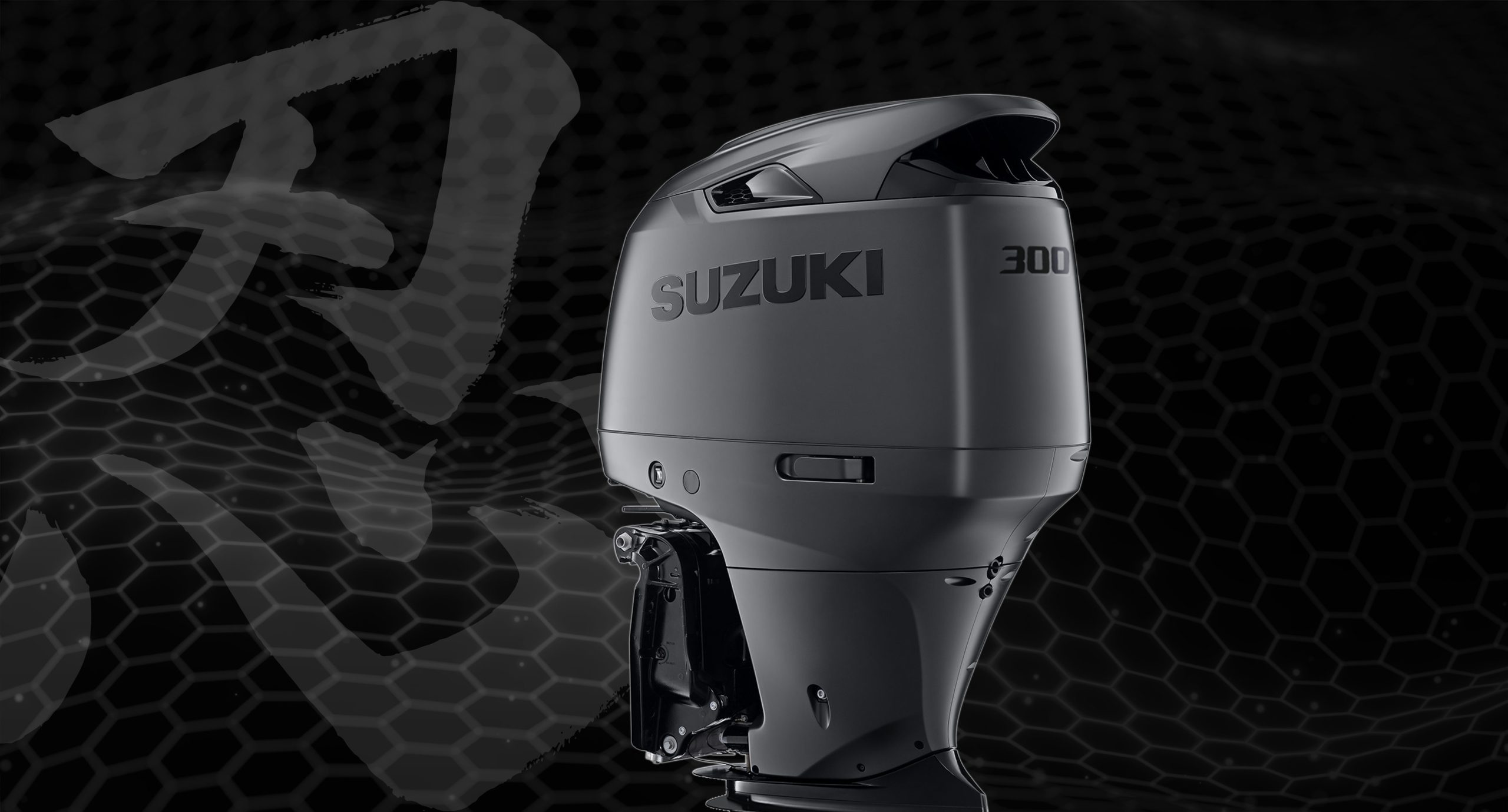

It's got the look.

The revised STEALTH engine offers a sleek cowling design featuring new intake louvers, upper cover grips (to assist with removing the cowling) and the new STEALTH graphics include the raised black Suzuki lettering that is only featured on this model.

One of a kind.

The new model offers Fly-By-Wire Digital Technology utilizing our new SPC 2.0 controls to integrate with features such as Auto-Trim that automatically raises or lowers the motor trim angle, Keyless Start System (optional), and the New Digital Pedal Throttle.

Designed to perform.

The new Lower unit is designed to improve cruising performance and prevent cavitation. The skeg has a specially designed “left-right  asymmetry” with a curve in it to assist in maneuvering. The Gear Oil drain plug and anode has been relocated behind the water screen. This engine also incorporates stiffer upper mounts for improved stability at speed.


DF300AP Stealth
Body Color
Matte Black
Recommended Transom Height (inches)
L: 20 X: 25
Starting System
Electric - Suzuki Start System
Weight LBS
L 626, X 639, XX 659
Engine Type
DOHC 24-Valve
Fuel Delivery System
Multi Point Sequential Electronic Fuel Injection with Lean Burn and Oxygen Sensor
No. Of Cylinders
V6 (55°)
Piston Displacement inches (cc)
245.6 (4028)
Bore X Stroke Inches (mm)
3.81 x 3.46 (98 x 89)
Maximum Output HP
Operating Range (RPM)
Oil Pan Capacity quarts (liter)
8.5 (8.0)
Ignition System
Solid State Direct Ignition
12V 54A
Trim Position
Power Trim and Tilt
Gear Ratio
Standard Propeller
Optional See Dealer
Propeller Selection
17 - 27.5
